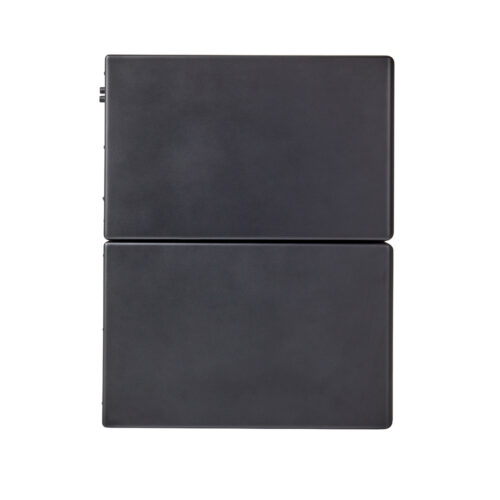

PMC8-2 SUB

The PMC 8-2 SUB is a true low-frequency monitor like the PMC8 SUB and offering the same DSP engine and seamless integration with surround and immersive systems, the PMC8-2 SUB betters the spec of its smaller sibling, offering higher maximum SPL output down to 25Hz.

With the same dimensions as the PMC8-2 midfield monitor, the PMC8-2 SUB’s twin eight-inch bass drivers are powered by independent 400W Class-D amplifiers. The same configuration options are available as on the PMC8 SUB, likewise accessible on the speaker’s rear panel or by using the browser-based SoundAlign™ software via a LAN-connected tablet, smartphone or computer.

The PMC8-2 SUB can be used as a standalone subwoofer for multichannel and immersive sound systems, or as an XBD cabinet with either PMC6-2 or PMC8-2 s, creating a system of awesome power and dynamic range. The sub is available in either left- or right-handed cabinet versions (PMC8-2 SUB-L or PMC8-2 SUB-R), to allow placement of the bass drivers on the outside edges of a stereo array, matching the arrangement of the main monitors.

• Active subwoofer with twin 8-inch bass drivers and ATL™ bass loading
• Frequency response: 25Hz – 500Hz (- 3dB) (@1m full space, on-axis)
• Max. cont. SPL: 115dB @1m (quarter space value calculated as +3dB from half space measurement.
  Unweighted input,20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
• State-of-the-art Class-D amplifier: 2 x 400W
• Analogue/AES3 digital input (16/24-bit, 18 -192kHz sample rate)
• Digital ‘through’ output (AES3 24-bit, 96kHz)
• SoundAlign™ network control interface for single or group EQ & settings
• Sophisticated DSP driver protection, EQ, and delay/phase options
• Dedicated XBD configuration mode

Specifications

TypeActive subwoofer with twin 8-inch bass drivers and ATL™ bass loading

Drive Unit ComplementLF PMC 200mm (8”) studio 8 driver

Effective ATL™ Length3m (9.8ft)

Frequency Response25Hz – 500Hz (- 3dB) (@1m full space, on-axis)

Sensitivity+4dBu input signal = 98dB SPL @ 1m

Max continuous SPL115dB @1m(Quarter space value calculated as +3dB from half space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)

Max Peak SPL121dB @1m(Quarter space value calculated as +3dB from half space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)

InputXLR switchable between analogue & digital AES3Analogue input– +20/+24dBu max. input level (selectable)– 22K ohm input impedanceDigital input– 16/24-bit AES3 signal, left, right or left + right– 18 – 192kHz Sample Rate– 110 ohm input impedanceExpansion card slot– For future connectivity upgrades

OutputXLR digital AES3 (fixed 24-bit @ 96kHz)

NetworkRJ45 for use with PMC SoundAlign web interface

FeaturesLevel Trim (+/-10dB)High-pass/Low-pass filter (20 – 200Hz, 12dB/Oct)Delay (0 – 30mS)Phase (normal or inverted)LF & HF shelving filters (20Hz – 20kHz, +/- 10dB, Q 0.707)Parametric EQ (5 bands, 20Hz – 20kHz, +/- 10dB)User presets (3 + factory defaults)

Latency2.4mS

Amplifier power per channel300Wrms

Mains100 – 240VAC auto-switching, 50-60Hz (IEC C14)

Power consumption (idle)25W

Power consumption (max)300W

Cabinet dimensionsH 534mm (21”))W 551mm (21.7”)D 440mm (17.3”)

Weight37.5kg (82.7lbs) each

Available Finishes: Studio black
